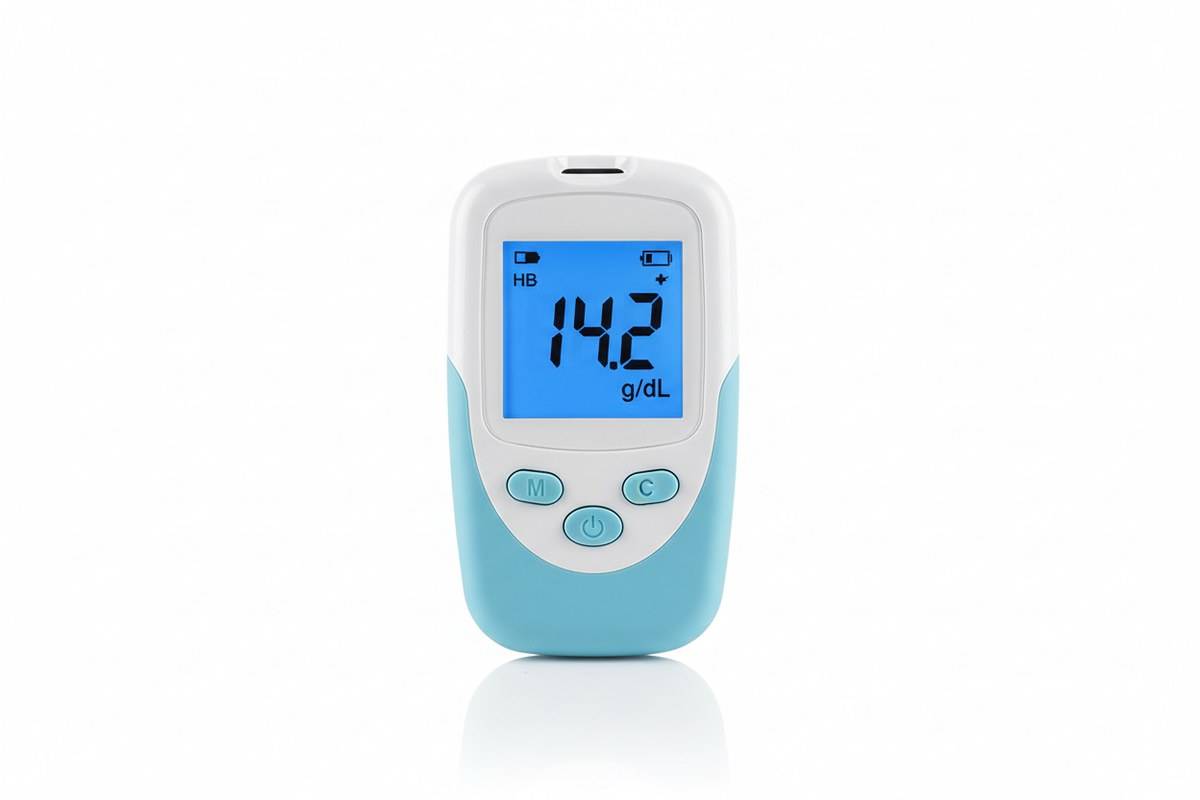

HB Meter

• Model: HBS-09
• Technology: Reflectance Photometry
• Parameters: Hemoglobin & Hematocrit (HCT)
• Sample Type: Capillary, Venous, or Arterial Whole Blood
• Sample Volume: ≤50 μL
• Measuring Range: 3.0–25.6 g/dL
• Measuring Time: ≤15 Seconds
• Memory Capacity: 1,000 Records
• Calibration: Auto/Self Calibration
• Display: 50 × 50 mm LCD
• Data Transfer: Optional USB Connectivity
• Measurement Units: g/dL, g/L, mmol/L
• Power Supply: 3 × AAA Batteries or Optional Mini USB Power
• Automatic Shutoff: 8 Minutes
• Battery Life: Up to 100 Hours or 1,000 Tests
• Weight: ≤500 g

Fast & Accurate Hemoglobin Testing

The POC HB Spot Digital Hemoglobin Meter uses advanced Reflectance Photometry technology to provide accurate hemoglobin and hematocrit (HCT) measurements in just 15 seconds.

Minimal Blood Sample Required

Requires only a single blood drop (≤50 μL), making testing quick, convenient, and comfortable for users.

Auto Self-Calibration

Built-in auto calibration technology helps ensure consistent and reliable performance while minimizing manual intervention.

Large Memory Storage

Stores up to 1,000 test records, making it suitable for clinics, diagnostic centers, blood donation camps, and routine patient monitoring.

Multiple Blood Sample Compatibility

Designed to measure hemoglobin and HCT levels using capillary, venous, or arterial whole blood samples, offering greater testing flexibility.

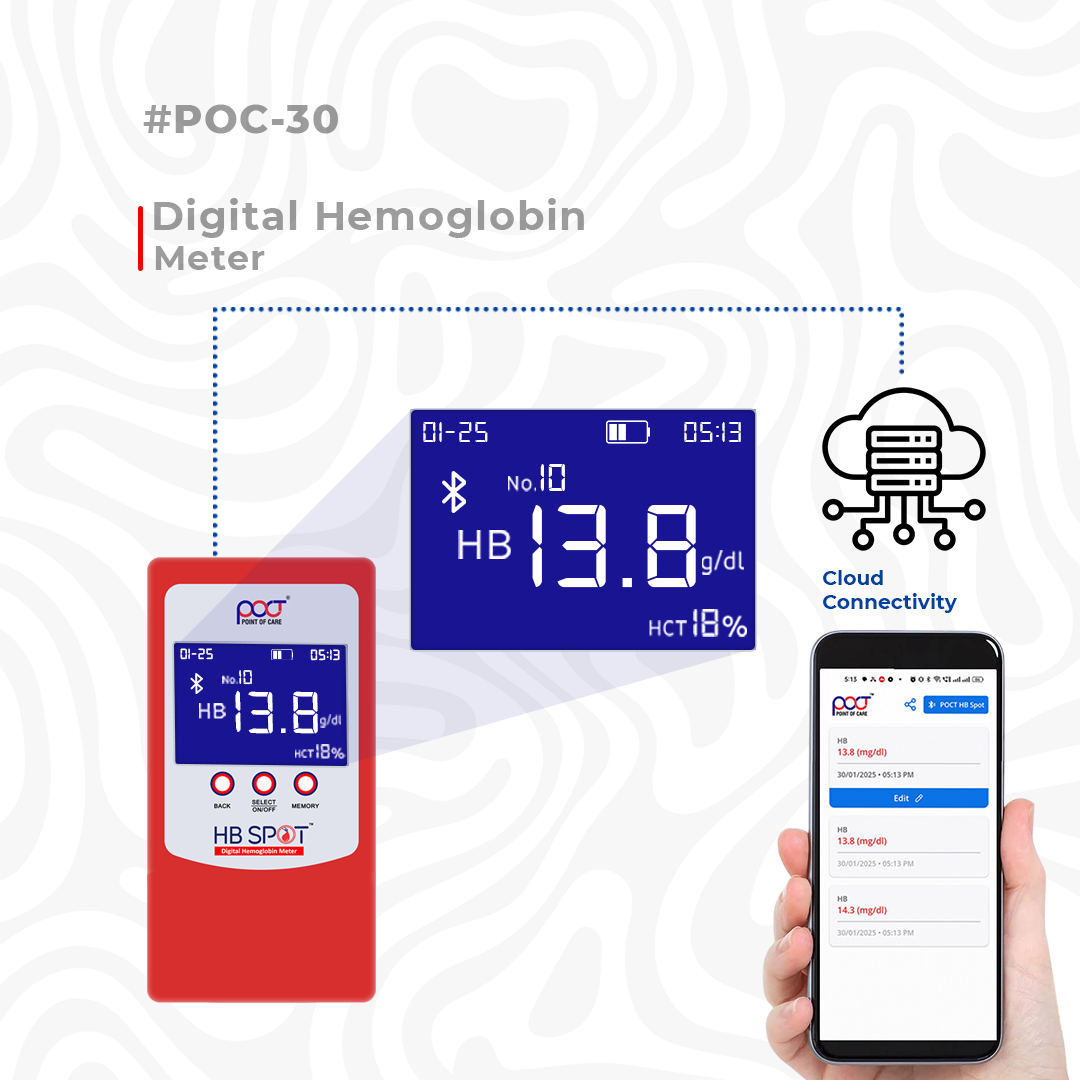

Easy Data Management

Features an optional USB data transfer port for convenient record management and external connectivity.

Portable & User-Friendly Design

Compact, lightweight, and battery-operated, the HB Spot meter is easy to carry and ideal for point-of-care testing in hospitals, clinics, laboratories, and field settings.

Multi-Unit Measurement

Supports measurement in g/dL, g/L, and mmol/L, allowing healthcare professionals to work according to their preferred reporting standards.
